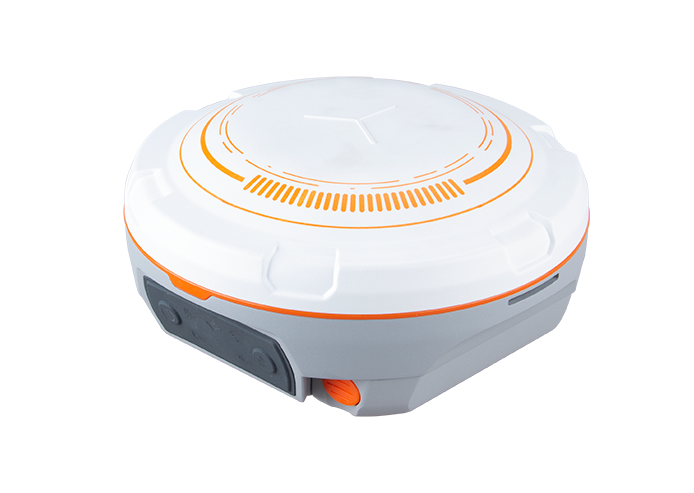

N3 IMU GNSS Receiver-datasheet
Channels: | 1198 |
GPS: | L1 C/A, L2C, L2P, L5 |
BeiDou: | B1, B2, B3 |
BeiDou Global Signal: | B1C, B2a |
GLONASS: | L1 C/A, L1P, L2 C/A, L2P |
Galileo: | E1, E5a, E5b, AltBOC |
QZSS: | L1C, L2, L5, L1C/A |
IRNSS: | L5 |
SBAS: | WAAS, EGNOS, MSAS, GAGAN |
Static and Fast Static: | 2.5 mm + 0.5 ppm Horizontal 5 mm + 0.5 ppm Vertical |
Long Observations Static: | 3 mm + 0.1 ppm Horizontal 3.5 mm + 0.4 ppm Vertical |
UHF/NTRIP RTKļ¼ | 8 mm + 0.5 ppm Horizontal 15 mm + 0.5 ppm Vertical |
